Sun Bicycles Atlas Transit
Details

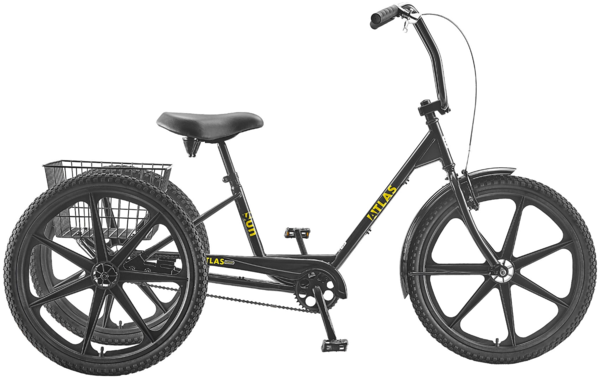

The Atlas Transit is our medium duty trike is perfect for hauling groceries from the local market or transporting packages around a warehouse. The frame is designed with the same Low-Step as our Traditional trike making for easy on and off access. Along with a complement of durable components, the 24" version is customizable with 3 different wheel styles. The 20" SD version comes stock with alloy wheels, includes a Sun custom trike saddle with adjustable backrest, and Velcro toe straps for secure foot placement.
- Wheels sold separately
- High-tensile steel Low-Step frame
- Single-speed drivetrain (Additional gearing options available separately)
- Alloy linear-pull front brake with parking lock (Additional brake options available separately)
- One-piece steel crank with sealed bottom bracket
- 24" x 1.95" multi-condition tires
- 13" high-rise steel handlebar and threadless MX stem, rubber grips
- Sun XL trike saddle with heavy-duty steel base
- Steel chain guard and front fender
- Viny coated heavy-duty steel wire basket
Wheel options:
- Skyway mags
- Alloy rims with 14g stainless steel spokes
- Heavy duty steel rims with 12g UCP steel spokes
- MSRP shown includes Skyway mags
Weight:
- Trike Weight: 56 Lbs (with Skyway mags)
- Rider Weight Limit: 250 Lbs.
- Basket Weight Limit: 50 Lbs. (Not Designed for People or Pets)
- Recommended Fit: 5'0" to 6'2"

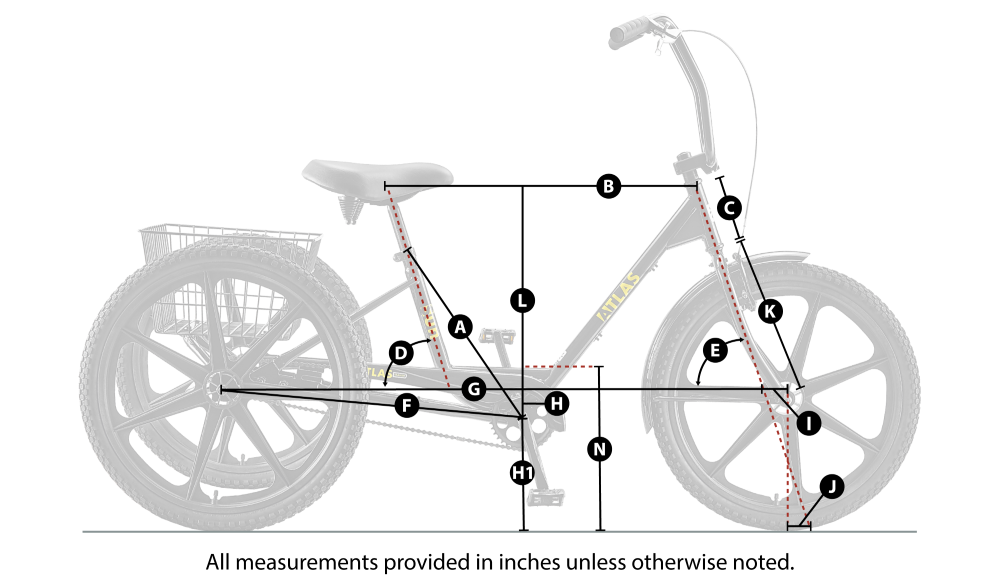

| Frame Size | 17" | |
|---|---|---|
| Seat Tube, Center To Top | A | 17" |
| Top Tube, Effective | B | 27.5" |
| Top Tube, Actual | B4 | 26" |
| Head Tube | C | 5.5" |
| Seat Tube Angle | D | 70° |
| Head Tube Angle | E | 70° |
| Chainstay | F | 23" |
| Wheelbase | G | 46.3" |
| Bottom Bracket Drop | H | 1.9" |
| Fork Offset | I | 1.8" |
| Axle To Crown | K | 14.5" |
| Step-Thru / Standover | N | 13.25" |
| Minimum Step Through | O | 13.25" |
| Minimum Saddle To Ground | 27.5" | |
| Minimum Saddle To Pedal, Trike | 27.5" | |
| Overall Length (Trike) | U | 71.5" |
| Overall Width (Trike) | V | 30.25" |
| Overall Height (Trike) | W | 45" |
| Wheel Size | 24" | |
| Crank Length | 170mm | |
| Stem Length | 50mm | |
| Handlebar Width | 31.5" Wide / 13" Rise |
Specs
| Frame | High-Tensile Steel, TIG-Welded, Frame Rear Unit: High Tensile Steel, TIG-Welded, Disc and Der Compatible |
|---|---|
| Fork | 1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets |
| Wheels | Ordered Separately |
| Tires | 24 x 1.95", Black Wall |
| Bottom Bracket | Steel for OPC, Caged Bearings with Seal |
| Crankset | One-Piece Heavy Duty Hot Forged Steel, 170mm |
| Cassette/Freewheel | 20T x 1/2" x 1/8" |
| Chain | Taya 1/2" x 1/8", 130 Links |
| Brakes | Alloy, Linear Pull |
| Brake Levers | Alloy, Linear Pull w/ 3-Finger Lever and Parking Lock |
| Handlebars | Steel, 31.5" Wide 13" Rise x 22.2mm Clamp |
| Tape/Grips | Heavy Duty Rubber, 125mm |
| Stem | Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp |
| Headset | Steel, Semi Cartridge Bearings, 28.6 x 34 x 30mm |
| Seatpost | Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12" |
| Saddle | Deluxe Cruiser, Double Coil Spring Suspension |
| Pedals | Slip Resistant Top, 1/2" |
| Accessories & Extras | Chain Guard: Steel, Painted, Basket: Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High, Front Fender: Steel, W/Single Strut, Painted |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Black / One Size / 24-inch | 888571014585 | 670205 | 210000022898 |
